MTP MPO 850nm 100m Optical Transceiver Module Mellanox MMA1B00-C100D

Product Categories
Shenzhen Gaveid communication Technology Co.,Ltd
Contact Now

MTP MPO 850nm 100m Optical Transceiver Module Mellanox MMA1B00-C100D

Brand Name : Gvdlink

Model Number : GVD-QSFP-100G-SR4

Certification : CE,ROHS,FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C,Paypal

Supply Ability : 3500pcs per week

Delivery Time : 1-5 working days

Packaging Details : Standard neutral or brand packing

Product name : optical transceiver

Type : QSFP28

Data Rate : 103.125Gbps (4x 25.78Gbps)

Wavelength : 850nm

Distance : 100m

Connector : MTP/MPO-12

Transmitter Type : VCSEL 850nm

Receiver Type : PIN

Operating temprature : -20~70 C -40~85 C

Warranty : 3 years

Contact Now

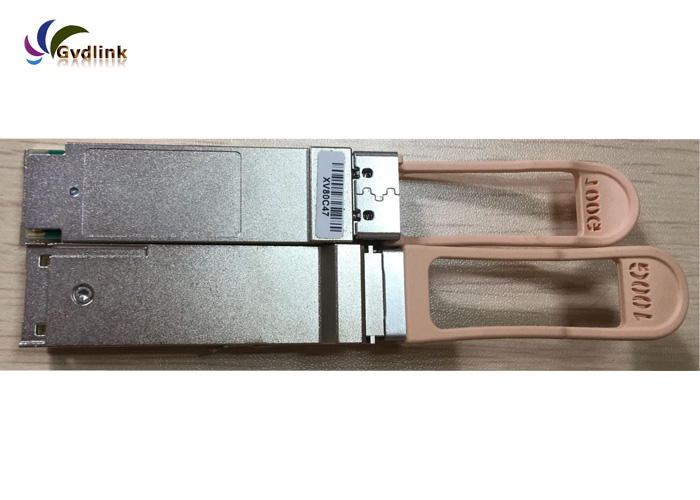

Mellanox MMA1B00-C100D Compatible 100GBASE-SR4 QSFP28 850nm 100m Transceiver Module

The mellanox MMA1B00-C100D Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Description

item Description
Part number MMA1B00-C100D
Version support Supported in V200R001C00 and later versions
Transceiver form factor QSFP28
Transmission speed 100GE
Center wavelength (nm) 850nm
Standards compliance 100GBASE-SR
Connector type MTP/MPO-12
Type of the end face of the fiber ceramic ferrule PC or UPC
Applicable cable and maximum transmission distance

Multimode fiber (OM3) (with diameter of 50 μm): 75 m

Multimode fiber (OM4) (with diameter of 50 μm): 100 m
Modal bandwidth Multimode fiber (OM3): 2000 MHz*km

Multimode fiber (OM4): 4700 MHz*km
Transmit power (dBm) -7.5 to +3.4
Maximum receiver sensitivity (dBm) -10.5
Overload power (dBm) 2.4
Extinction ratio (dB) ≥ 2
Operating temperature 0°C to 70°C

Wide Application

  • Fully compatible with Mellanox devices
  • Widely used on 100G switches, routers, servers, NICs and other transmission equipment
  • Suitable for telecom, data center, high-performance computing networks, etc.

High Performance and Reliability

  • High quality MACOM chip
  • ≤1.8W (Typical) low power consumption
  • MTBF over 12,800,000 hours
  • Dual CDR (TX and RX) Stainless steel material, anti-corrosion, and salt spray resistance

Mellanox QSFP28 100G Product series

Mellanox Model Description
MMA1L10-CR 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF
MMS1C10-CM 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF
MMA1B00-C100D 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF
MMA1L30-CM 100GBASE-CWDM4 QSFP28 1310nm 2km LC SMF
QSFP28-EIR4-100G 100GBASE-4WDM-10 QSFP28 1310nm 10km DOM LC SMF
QSFP28-ER4-100G 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF
QSFP28-LR4-100/112G 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km LC SMF
QSFP28-LR4-100/112G-20 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km DOM LC SMF
QSFP28-ER4-100/112G 100GBASE-ER4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 40km DOM LC SMF
MMA1L10-CR-I 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF
