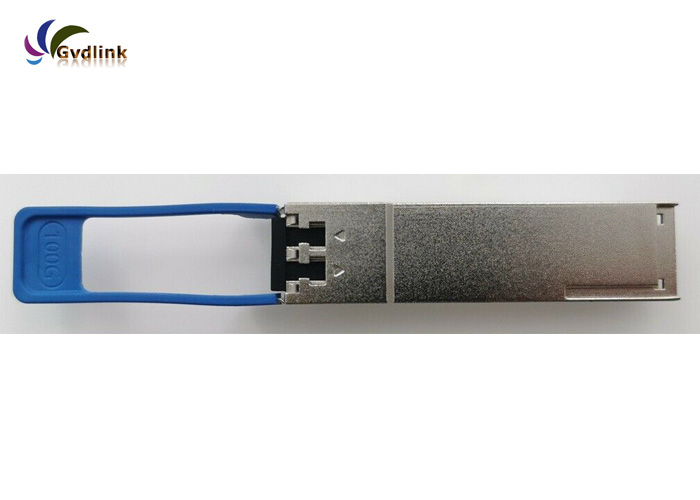

Mellanox MMS1C10-CM Compatible 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF Optical Transceiver Module
the Gvdlink for Mellanox MMS1C10-CM Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
Description
- Transceiver Type PSM4
- Reach 500m
- Connector MPO
- Form Type QSFP28 100G
- Wavelength 1310nm
- Media SMF
- Speed Description 100-Gigabit
- Speed 100GBase
- DOM DOM
- Compatible With OEM Part Number(s) MMS1C10-CM
Applications
- Fully compatible with almost all Mellanox devices
- Widely used on 100G switches, routers, servers, NICs and other transmission equipment
- Suitable for data center, high-performance computing networks, etc
Mellanox QSFP28 100G Product series
| Mellanox Model | Description |
| MMA1L10-CR | 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF |
| MMS1C10-CM | 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF |
| MMA1B00-C100D | 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF |
| MMA1L30-CM | 100GBASE-CWDM4 QSFP28 1310nm 2km LC SMF |
| QSFP28-EIR4-100G | 100GBASE-4WDM-10 QSFP28 1310nm 10km DOM LC SMF |
| QSFP28-ER4-100G | 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF |
| QSFP28-LR4-100/112G | 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km LC SMF |
| QSFP28-LR4-100/112G-20 | 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km DOM LC SMF |
| QSFP28-ER4-100/112G | 100GBASE-ER4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 40km DOM LC SMF |
| MMA1L10-CR-I | 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF |
Guarantee
We provide 3 years warranty for all the optical transceivers from the date of shipment .
Our products are compatible with Cisco , Ciena , H3C , Extreme , Foundry , Mellanox , Avaya , D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .
