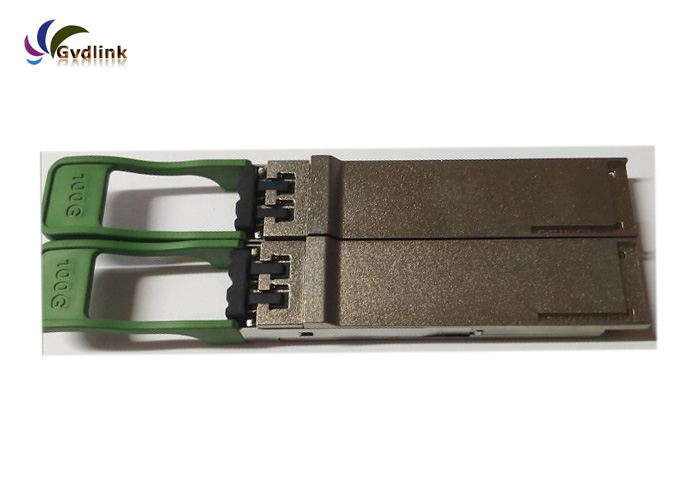

02311MNP QSFP-100G-CLR4 Compatible QSFP 100GBASE-CLR4 2km transceiver
The Huawei 02311MNP QSFP-100G-CLR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) with duplex LC connectors . The 100 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331 nm. This transceiver is compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA , SFF-8665 , SFF-8636 and ITU-T G.694 .
Description
| item | Description |
| Part number | 02311MNP QSFP-100G-CLR4 |
| Version support | Supported in V200R001C00 and later versions |
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 1271, 1291, 1311, 1331 |
| Standards compliance | 100GBASE-CLR4 |
| Connector type | LC |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 2 km |
| Modal bandwidth | - |
| Transmit power (dBm) | -6.5 to +2.5 |
| Maximum receiver sensitivity (dBm) | -10.7 |
| Overload power (dBm) | 2.5 |
| Extinction ratio (dB) | ≥ 3.5 |
| Operating temperature | 0°C to 70°C |
Applications
Huawei QSFP28 100G Product series
| Part number | Model | Description |
| 02311KNU | QSFP28-100G-LR4 | 100GBASE LR4 QSFP LC 10km |
| 02311MNM | QSFP28-100G-PSM4 | 100GBASE-PSM4 QSFP 500m |
| 02311GBW | QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100m |
| 02313EEK | QSFP28-100G-BIDI | 100G PAM4 BiDi 850/910nm 100m |
| 02311MNP | QSFP-100G-CLR4 | 100GBASE-CLR4 1271/1291/1311/ 1331nm 2km |
| 02311MNN | QSFP-100G-CWDM4 | 100GBASE-CWDM4 1271/1291/1311/ 1331nm 2km |
| 02312UJN | QSFP-100G-CWDM4-500 | 100GBASE-CWDM4 1271/1291/1311/ 1331nm 500m |
| 02311UPS | QSFP-100G-LR4-Lite | 100GBASE-LR4 1295/1300/1304/1309nm 2km |
| 02312DAT | QSFP-100G-eCWDM4 | 100GBASE-eCWDM4 1271/1291/1311/1331 10km |
| 02311YXR | QSFP-100G-ER4-Lite | 100GBASE-ER4 1295/1300/1304/1309nm 40km |
| 02311QUK | QSFP-100G-SWDM4 | 100G-SWDM4 850nm 100m |
Guarantee
Our products are compatible with Cisco , Ciena , H3C , Extreme , HP , Foundry , Avaya , D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .
