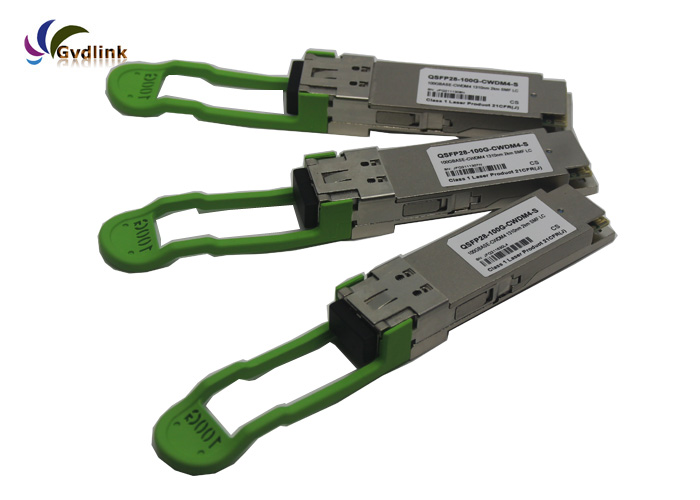

02311MNN QSFP-100G-CWDM4 Compatible QSFP 100GBASE-CWDM4 2km transceiver
The Huawei 02311MNN QSFP-100G-CWDM4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331 nm. This transceiver is compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636 and ITU-T G.694.2 standards.
Description
| item | Description |
| Part number | 02311MNN QSFP-100G-CWDM4 |
| Version support | Supported in V200R001C00 and later versions |
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 1295, 1300, 1304, 1309 |
| Standards compliance | 100GBASE-CWDM4 |
| Connector type | LC |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
| Modal bandwidth | - |
| Transmit power (dBm) | -6.5 to +2.5 |
| Maximum receiver sensitivity (dBm) | -9.8 |
| Overload power (dBm) | 2.5 |
| Extinction ratio (dB) | ≥ 3.5 |
| Operating temperature | 0°C to 70°C |
Advantages
- High Performance and Reliability
- ≤3.5W low power consumption, saving power
- MTBF over 708,800,000 hours
- Dual CDR (TX and RX)
- Stainless steel material, anti-corrosion, and salt spray resistance
Applications
Huawei QSFP28 100G Product series
| Part number | Model | Description |
| 02311KNU | QSFP28-100G-LR4 | 100GBASE LR4 QSFP LC 10km |
| 02311MNM | QSFP28-100G-PSM4 | 100GBASE-PSM4 QSFP 500m |
| 02311GBW | QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100m |
| 02313EEK | QSFP28-100G-BIDI | 100G PAM4 BiDi 850/910nm 100m |
| 02311MNP | QSFP-100G-CLR4 | 100GBASE-CLR4 1271/1291/1311/ 1331nm 2km |
| 02311MNN | QSFP-100G-CWDM4 | 100GBASE-CWDM4 1271/1291/1311/ 1331nm 2km |
| 02312UJN | QSFP-100G-CWDM4-500 | 100GBASE-CWDM4 1271/1291/1311/ 1331nm 500m |
| 02311UPS | QSFP-100G-LR4-Lite | 100GBASE-LR4 1295/1300/1304/1309nm 2km |
| 02312DAT | QSFP-100G-eCWDM4 | 100GBASE-eCWDM4 1271/1291/1311/1331 10km |
| 02311YXR | QSFP-100G-ER4-Lite | 100GBASE-ER4 1295/1300/1304/1309nm 40km |
| 02311QUK | QSFP-100G-SWDM4 | 100G-SWDM4 850nm 100m |
Guarantee
We provide 3 years warranty for all the optical transceivers from the date of shipment .
Our products are compatible with Cisco , Ciena , H3C , Extreme , HP ,Foundry , Avaya , D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .
Please Note
Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
